Duplex DU321-3D-TL 20

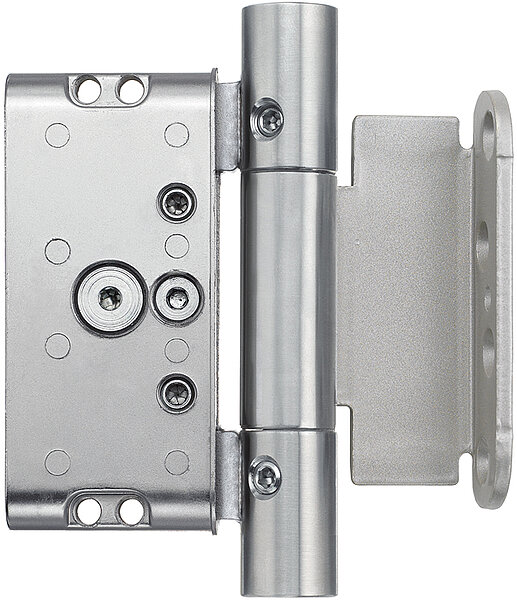

Front door hinge with hinge cup and hinge flap, 20 mm overlap – up to 200 kg door weight
Product selection
Select a product version so we can show you the exact availability and price.
All orders are processed through us and invoiced through your chosen retailer. Prices exclude VAT.
+43 5574 74177-0
Finishes
| Order number | Finish |
|
ctn | x-ctn | UVP / Piece | Krt. | Total Piece | ||
|---|---|---|---|---|---|---|---|---|---|
| DU321DL-3L-TL-ES-S 20-D2-SIG |
stainless steel - left
|
6 | 30 | 6 | EUR 75,84 |
Available immediately
On request
Quantity on request
|
|||
| DU321DL-3R-TL-ES-S 20-D2-SIG |
Edelstahl - rechts
|
6 | 30 | 6 | EUR 75,84 |
Available immediately
On request
Quantity on request
|
|||
| DU321DL-3L-TL-WE-S 20-D2-SIG |
weiß - links
|
6 | 30 | 6 | EUR 62,54 |
Available immediately
On request
Quantity on request
|
|||
| DU321DL-3R-TL-WE-S 20-D2-SIG |
white - right
|
6 | 30 | 6 | EUR 62,54 |
Available immediately
On request
Quantity on request
|
|||
| DU321DL-3L-TL-SM-S 20-D2-SIG |
matte back - le
|
6 | 30 | 6 | EUR 62,54 |
Available immediately
On request
Quantity on request
|
|||
| DU321DL-3R-TL-SM-S 20-D2-SIG |
matte back - ri
|
6 | 30 | 6 | EUR 62,54 |
Available immediately
On request
Quantity on request
|
|||
| DU321DL-3L-TL-EFP-S 20-D2-SIG |
SS finish – left
|
6 | 30 | 6 | EUR 62,54 |
Available immediately
On request
Quantity on request
|
|||
| DU321DL-3R-TL-EFP-S 20-D2-SIG |
SS finish – right
|
6 | 30 | 6 | EUR 62,54 |
Available immediately
On request
Quantity on request
|
| Order number | Finish |
|
ctn | x-ctn | UVP / Piece | Krt. | Total Piece | ||
|---|---|---|---|---|---|---|---|---|---|
| DU321DL-3L-TL-ES-S 20-D3-SIG |
stainless steel - left
|
6 | 30 | 6 | EUR 75,84 |
Available immediately
On request
Quantity on request
|
|||
| DU321DL-3R-TL-ES-S 20-D3-SIG |
Edelstahl - rechts
|
6 | 30 | 6 | EUR 75,84 |
Available immediately
On request
Quantity on request
|
|||
| DU321DL-3L-TL-WE-S 20-D3-SIG |
weiß - links
|
6 | 30 | 6 | EUR 62,54 |
Available immediately
On request
Quantity on request
|
|||
| DU321DL-3R-TL-WE-S 20-D3-SIG |
white - right
|
6 | 30 | 6 | EUR 62,54 |
Available immediately
On request
Quantity on request
|
|||
| DU321DL-3L-TL-SM-S 20-D3-SIG |
matte back - le
|
6 | 30 | 6 | EUR 62,54 |
Available immediately
On request
Quantity on request
|
|||
| DU321DL-3R-TL-SM-S 20-D3-SIG |
matte back - ri
|
6 | 30 | 6 | EUR 62,54 |
Available immediately
On request
Quantity on request
|
|||
| DU321DL-3L-TL-EFP-S 20-D3-SIG |
SS finish – left
|
6 | 30 | 6 | EUR 62,54 |
Available immediately
On request
Quantity on request
|
|||
| DU321DL-3R-TL-EFP-S 20-D3-SIG |
SS finish – right
|
6 | 30 | 6 | EUR 62,54 |
Available immediately
On request
Quantity on request
|
| Order number | Finish |
|
ctn | x-ctn | UVP / Piece | Krt. | Total Piece | ||
|---|---|---|---|---|---|---|---|---|---|
| DU321DL-3L-TL-ES-S 20-D4-SIG |
Edelstahl - links
|
6 | 30 | 6 | EUR 75,84 |
Available immediately
On request
Quantity on request
|
|||
| DU321DL-3R-TL-ES-S 20-D4-SIG |
stainless steel - right
|
6 | 30 | 6 | EUR 75,84 |
Available immediately
On request
Quantity on request
|
|||
| DU321DL-3L-TL-WE-S 20-D4-SIG |
white - left
|
6 | 30 | 6 | EUR 62,54 |
Available immediately
On request
Quantity on request
|
|||
| DU321DL-3R-TL-WE-S 20-D4-SIG |
white - right
|
6 | 30 | 6 | EUR 62,54 |
Available immediately
On request
Quantity on request
|
|||
| DU321DL-3L-TL-SM-S 20-D4-SIG |
matte back - le
|
6 | 30 | 6 | EUR 62,54 |
Available immediately
On request
Quantity on request
|
|||
| DU321DL-3R-TL-SM-S 20-D4-SIG |
matte back - ri
|
6 | 30 | 6 | EUR 62,54 |
Available immediately
On request
Quantity on request
|
|||
| DU321DL-3L-TL-EFP-S 20-D4-SIG |
SS finish – left
|
6 | 30 | 6 | EUR 62,54 |
Available immediately
On request
Quantity on request
|
|||
| DU321DL-3R-TL-EFP-S 20-D4-SIG |
edelst.fin. - rechts
|
6 | 30 | 6 | EUR 62,54 |
Available immediately
On request
Quantity on request
|
Description
Design: The hinge casing is made of zinc die-cast; the hinge knuckle and pivot pin are made of stainless steel or steel. The hinge leaf is made of steel.

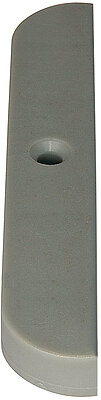

Plastic Covers: The plastic covers are made of glass-fibre reinforced plastic.
The plastic covers are supplied as standard with the hinges! The correct version is selected automatically when you specify the required sealing system during product selection.
Fire Protection: The Duplex 321-3D front door hinge is suitable for fire protection class T30.
Burglar Resistance: Depending on the rebate system, the Duplex 321-3D front door hinge is suitable up to resistance class RC3.
Important Note: Please refer to our adjustment instructions for guidance on removing the central sleeve.
Technical data
|
Hingetype |
Hinge rollØ mm |
Hinge height mm |
Load cap. 2 Hng. kg |
Load cap. 3 Hng. kg |
Load cap. 4 Hng. kg |
Fire protection |
CE |
|---|---|---|---|---|---|---|---|
| TL | Ø21 | 124 | 110 | 130;160 | 160 | T30 |
