Top TO320SM-HS-FR
Front door hinge with Ø7 mm sash pin – up to 120 kg door weight
Product selection
Select a product version so we can show you the exact availability and price.
Available from Goll warehouse.
Delivery quantity on request
Stock availability is being double-checked.
Bulk quantity on request
Stock availability is being double-checked.
UVP/Piece
EUR
-
Order number
Order number Stift
Order number Schrauben
All orders are processed through us and invoiced through your chosen retailer. Prices exclude VAT.
Quick order
+43 5574 74177-0
+43 5574 74177-0
Finishes
| Order number | Finish | ctn | x-ctn | UVP / Piece | Krt. | Total Piece | |||
|---|---|---|---|---|---|---|---|---|---|

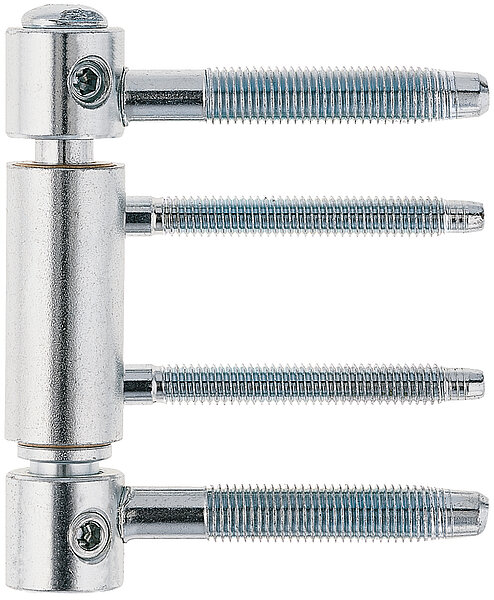

| TO320SM-HSL-FR-WV-S S2 |
white zinc-plated – left
|
10 | 50 | 10 | EUR 28,00 |
Available immediately
On request
Quantity on request
|
|||
| TO320SM-HSR-FR-WV-S S2 |
white zinc-plated – right
|
10 | 50 | 10 | EUR 28,00 |
Available immediately
On request
Quantity on request
|
| Order number | Finish | ctn | x-ctn | UVP / Piece | Krt. | Total Piece | |||
|---|---|---|---|---|---|---|---|---|---|
| TO320SM-HSL-FR-WV-S S3 |
white zinc-plated – left
|
10 | 50 | 10 | EUR 34,51 |
Available immediately
On request
Quantity on request
|
|||
| TO320SM-HSR-FR-WV-S S3 |
white zinc-plated – right
|
10 | 50 | 10 | EUR 34,51 |
Available immediately
On request
Quantity on request
|
| Order number | Finish | ctn | x-ctn | UVP / Piece | Krt. | Total Piece | |||
|---|---|---|---|---|---|---|---|---|---|
| TO320SM-HSL-FR-WV-S S9 |
white galv. - left
|
10 | 50 | 10 | EUR 29,41 |
Available immediately
On request
Quantity on request
|
|||
| TO320SM-HSR-FR-WV-S S9 |
white galv. - right
|
10 | 50 | 10 | EUR 29,41 |
Available immediately
On request
Quantity on request
|
Description

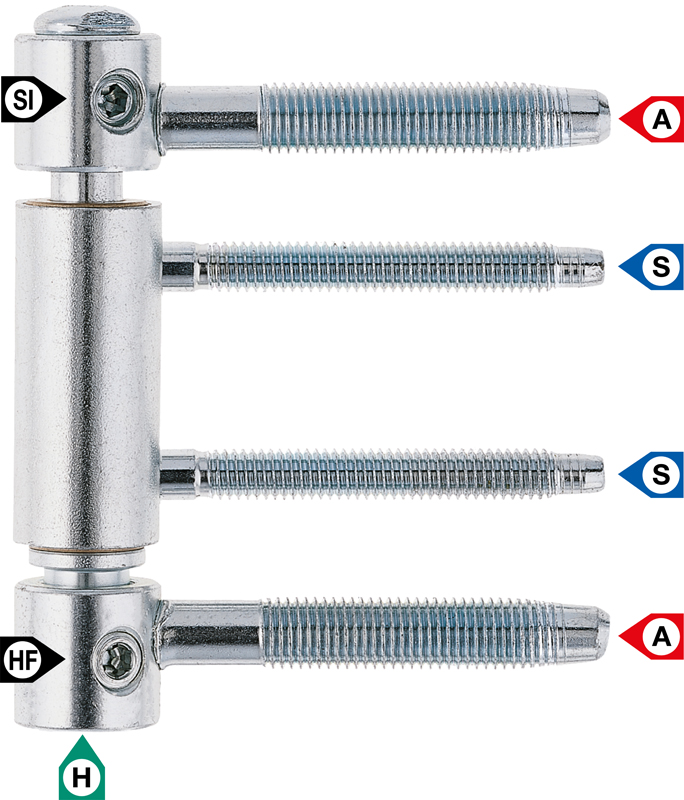

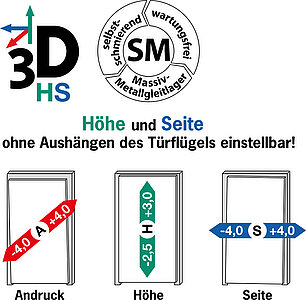

Herkula 320 Lift

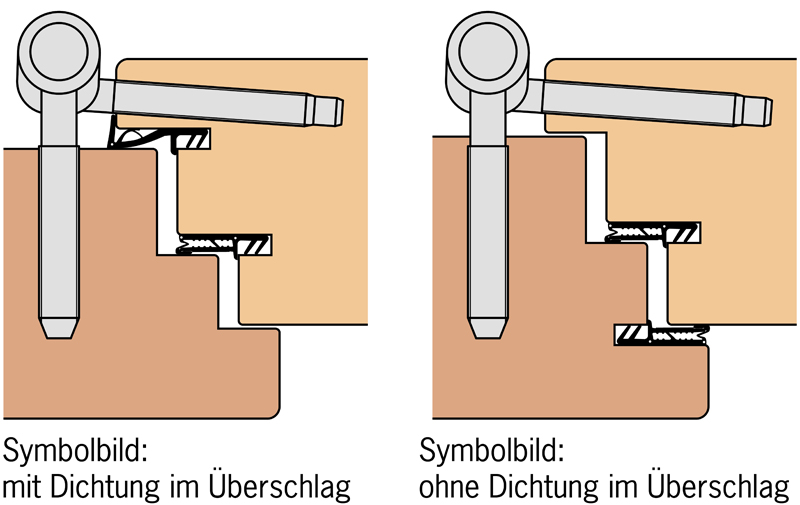

Version: The sash bolts for the Top 320 Lift front door hinge are drilled in at a 4° angle. This makes them suitable even for doors with small overlap dimensions.
Installation note: The holes for the 100 mm long sash bolts must be re-drilled in hardwoods using the drill BOH-063-ZYL with Ø6.3 mm.
Technical data
|
Hingetype |
Frame bolt. mm |
Sash pin mm |
Hinge roll Ø mm |
Boltspacing mm |
Hinge height mm |
Tragkraft_2Bd_Web kg |
Fire protection |
CE |
|---|---|---|---|---|---|---|---|---|

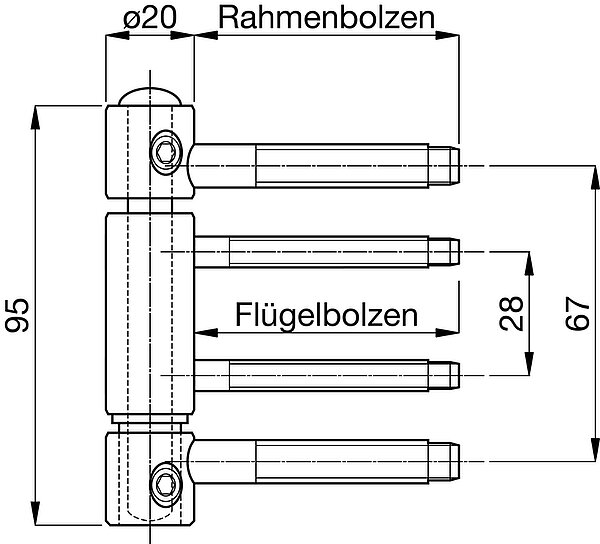

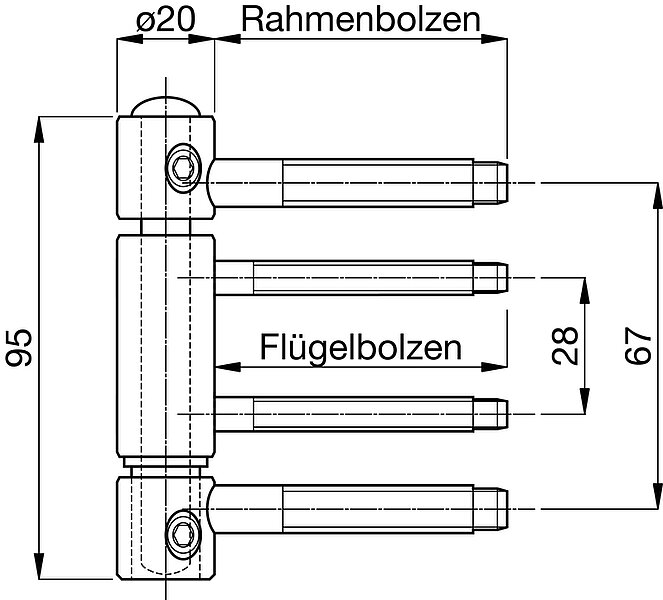

| FR..S2 | Ø9,8x60 | Ø7x60 | Ø20 | 67 | 95 | 100 kg | ||
| FR..S3 | Ø9,8x60 | Ø7x100 | Ø20 | 67 | 95 | 100 kg | T30 | |
| FR..S9 | Ø9,8x60 | Ø7x50 | Ø20 | 67 | 95 | 100 kg |
Features
Downloads
Product information
[ pdf ]
CAD data
[ dwg ]
[ dwg ]
